Product Details:
|
| Warranty: | 1year | Rated Voltage: | 110V-480V |
|---|---|---|---|
| Rated Current: | 20A To 7000A | Speed: | 1500 Rmp / 1800 Rmp |
| Frequency: | 50 Hz/ 60 Hz | Starting System: | 24V DC Electric Start |

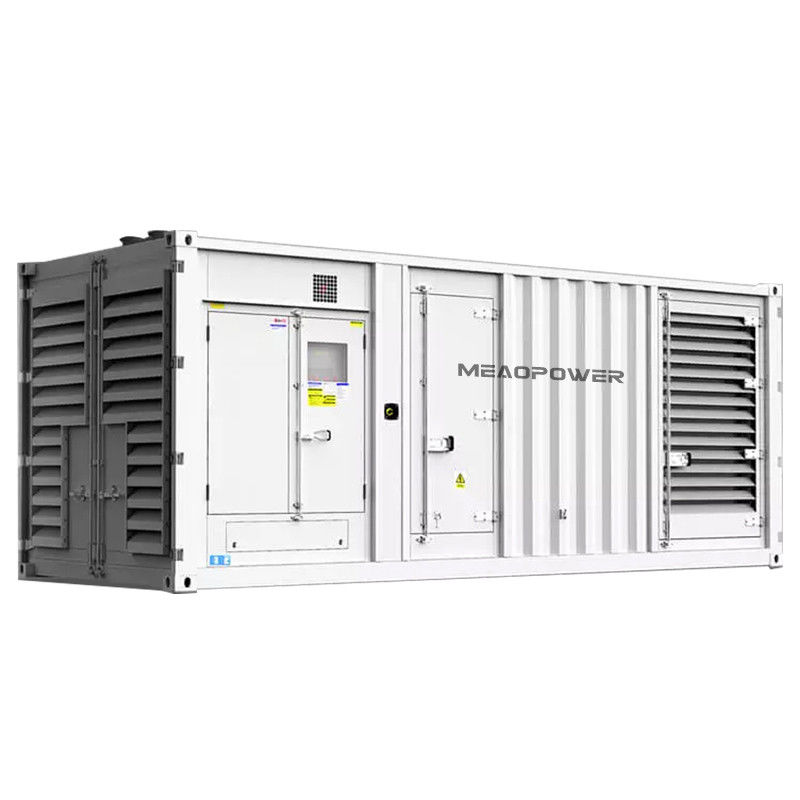

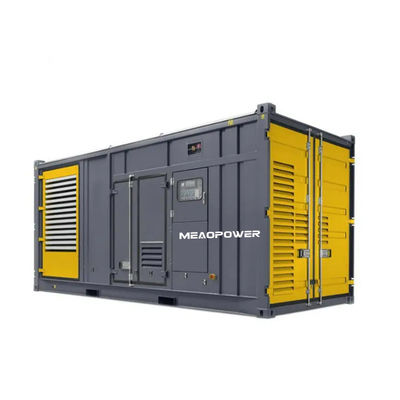

| Type: | Container Type | Weight: | 9800KG |
| Cooling System Type: | Water Cooling System | Engine Model: | S16R-PTA |
| Alternator: | MP-A-1400 | Rated Power: | 1400KW/1750KVA |
| Phase: | 3 | Engine Brand: | Mitsubishi Brand |
| Engine Cylinder: | 16/V | Noise: | 72dB(A) |
| Delivery Port: | Japan | Output Type: | AC Three Phase 220/380V 50/60Hz |
| Fuel: | 0#or-10# Light Diesel Oil |
Diesel generaor | value | |
Model | MP-L1400 | |
Power | 1400KW/1750KVA | |
Frequency | 50HZ | |
Voltage | 400V | |

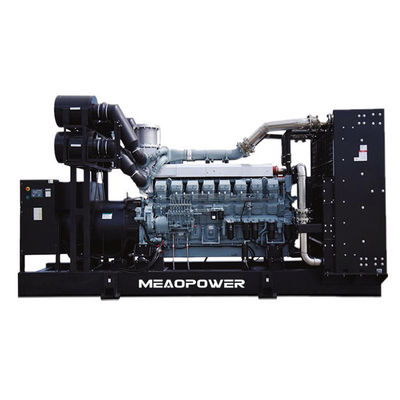

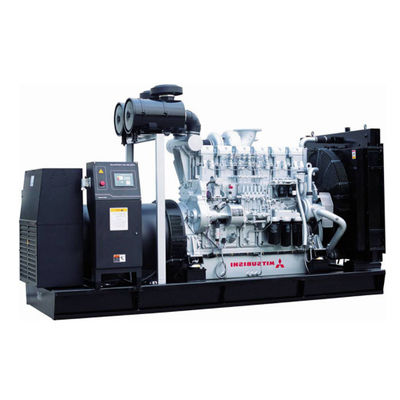

Optional type | Open type/Silent | |
Size of open type | 6058*2438*2896mm | |
Weight of open type | 15300kg | |
Engine | ||
Model | Mitsubishi S16R-PTA | |
Cylinder | 16V Arrangement | |
Bore*Stroke | 170mm*180mm | |
Displacement | 65.4L | |
Fuel consumption | 201g/kw.h | |
Speed governor | Electronic | |
Alternator | ||
Optional brand | Stamford/Leroy Somer/Mecc Alte/Marathon | |
Exciter type | Single bearing,brushless,Self-excited | |
Power factor | 0.8 | |
Voltage adjust | ≥5% | |
Insulation | H | |
Protection grade | IP23 | |
Controller | ||
Option brand | Deepsea/Deif/ComAp/Smartgen | |
