KTA50-G8 Engine Model 1200kw 1500kva AC Three Phase Silent Diesel Generator

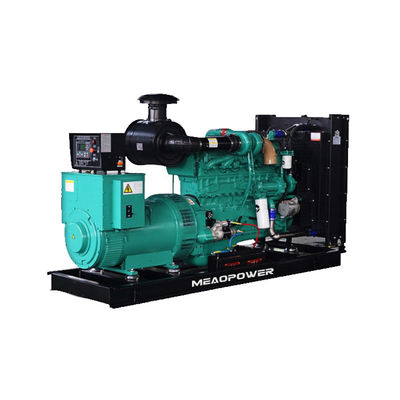

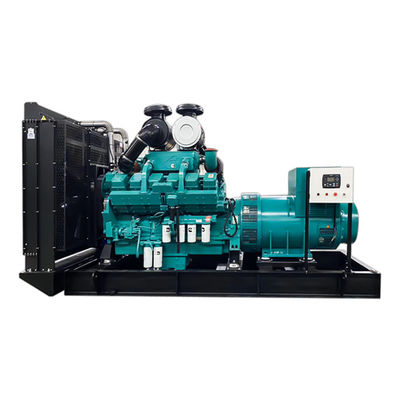

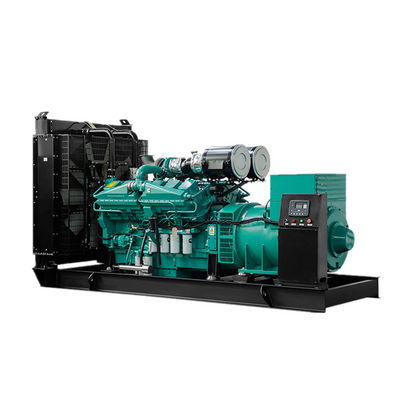

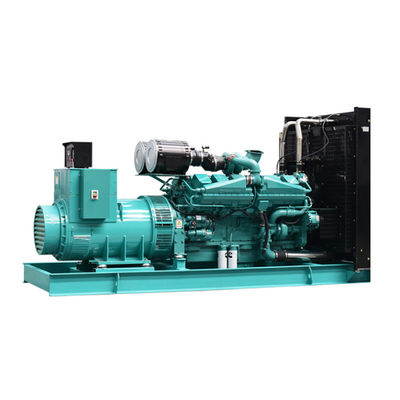

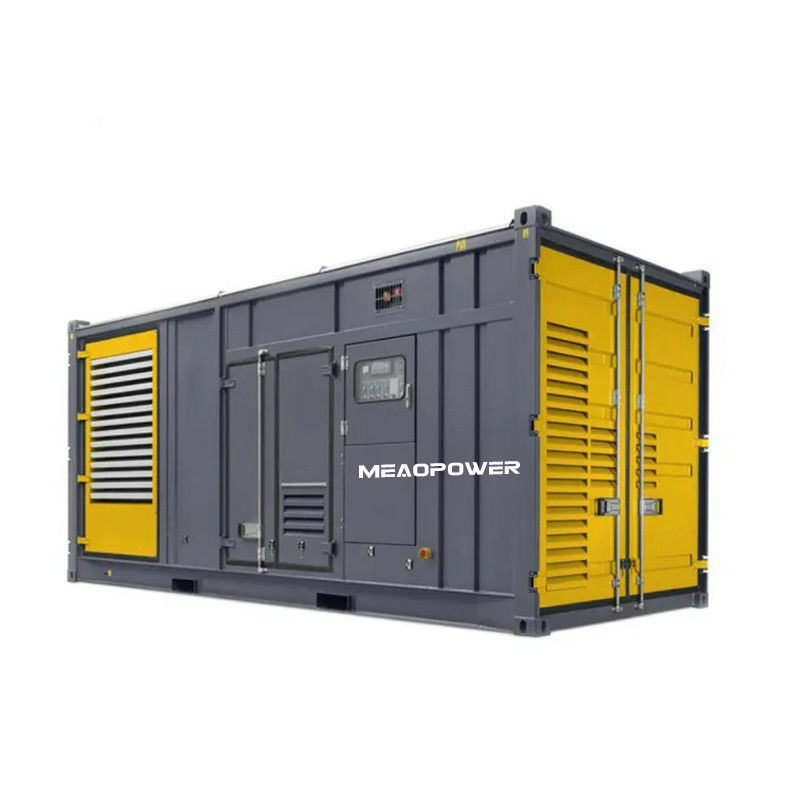

Large Image : KTA50-G8 Engine Model 1200kw 1500kva AC Three Phase Silent Diesel Generator

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	MEAOPOWER
Certification:	CE/ISO
Model Number:	MP-C1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$138,600.00/sets 1-4 sets
Packaging Details:	Plywood,PE Film Packing
Supply Ability:	100 Set/Sets per Month

Contact Now

KTA50-G8 Engine Model 1200kw 1500kva AC Three Phase Silent Diesel Generator

Description

Warranty:	1year	Rated Voltage:	110V-480V
Rated Current:	20A To 7000A	Speed:	1500 Rmp / 1800 Rmp
Frequency:	50 Hz/ 60 Hz	Weight:	12800KG
Engine Model:	KTA50-G8	Alternator:	MP-A-1200
Rated Power:	1200KW/1500KVA	Phase:	3
Engine Brand:	Cummins Brand	Engine Cylinder:	16/V
Noise:	72dB(A)	Delivery Port:	Chongqing China
Output Type:	AC Three Phase 220/380V 50/60Hz	Fuel:	0#or-10# Light Diesel Oil
Port:	Shanghai

Product Description

Specification

Diesel generaor		value
Model	MP-C1200
Power	1200KW/1500KVA
Frequency	50HZ
Voltage	400V
Optional type	Open type/Silent
Size of open type	1219224382896mm
Weight of open type	12800kg
Engine
Model	Cummins KTA50-G8
Cylinder	16V Arrangement
Bore*Stroke	159mm*159mm
Displacement	50L
Fuel consumption	204g/kw.h
Speed governor	Electronic
Alternator
Optional brand	Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type	Single bearing,brushless,Self-excited
Power factor	0.8
Voltage adjust	≥5%
Insulation	H
Protection grade	IP23
Controller
Option brand	Deepsea/Deif/ComAp/Smartgen
