Product Details:
|
| Warranty: | 1year | Rated Voltage: | 110V-480V |
|---|---|---|---|
| Rated Current: | 20A To 7000A | Speed: | 1500 Rmp / 1800 Rmp |
| Frequency: | 50 Hz/ 60 Hz | Weight: | 3500KG |
| Engine Model: | SC15G500D2 | Alternator: | MP-A-320 |
| Rated Power: | 320KW | Phase: | 3 |
| Engine Brand: | Shangchai Brand | Engine Cylinder: | 6/L |
| Noise: | 105dB(A) | Delivery Port: | Shanghai China |
| Output Type: | AC Three Phase 220/380V 50/60Hz | Fuel: | 0#or-10# Light Diesel Oil |
| Port: | Shanghai |

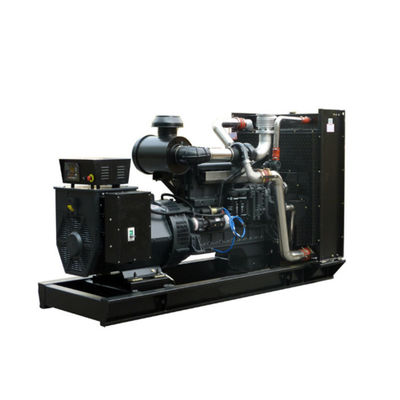

Diesel generaor | value | |
Model | MP-S320 | |
Power | 320KW/400KVA | |
Frequency | 50HZ | |
Voltage | 400V | |
Optional type | Open type/Silent | |
Size of open type | 3200*1350*1950mm | |
Weight of open type | 3500kg | |
Engine | ||
Model | Shangchai SC15G500D2 | |
Cylinder | 6L Arrangement | |
Bore*Stroke | 135mm*165mm | |
Displacement | 14.16L | |
Fuel consumption | 200g/kw.h | |
Speed governor | Electronic | |
Alternator | ||
Optional brand | Stamford/Leroy Somer/Mecc Alte/Marathon | |
Exciter type | Single bearing,brushless,Self-excited | |
Power factor | 0.8 | |
Voltage adjust | ≥5% | |
Insulation | H | |
Protection grade | IP23 | |
Controller | ||
Option brand | Deepsea/Deif/ComAp/Smartgen | |
