Product Details:
|
| Warranty: | 1year | Rated Voltage: | 110V-480V |
|---|---|---|---|
| Rated Current: | 20A To 7000A | Speed: | 1500 Rmp / 1800 Rmp |
| Frequency: | 50 Hz/ 60 Hz | Starting System: | 24V DC Electric Start |
| Type: | Super Silent Type | Weight: | 15200KG |
| Cooling System Type: | Water Cooling System | Engine Model: | 12V4000G14F |
| Alternator: | MP-A-1300 | Rated Power: | 1300KW/1625KVA |
| Phase: | 3 | Engine Brand: | MTU Brand |
| Engine Cylinder: | 12/V | Noise: | 75dB(A) |
| Delivery Port: | Germany | Output Type: | AC Three Phase 220/380V 50/60Hz |
| Fuel: | 0#or-10# Light Diesel Oil | Port: | Shanghai |
|

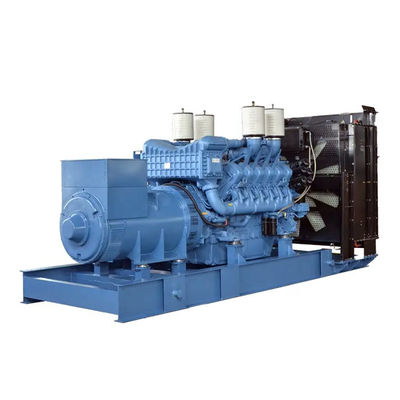

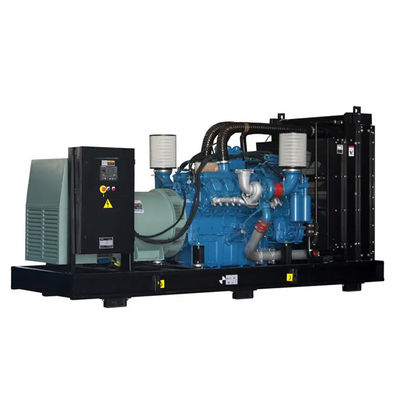

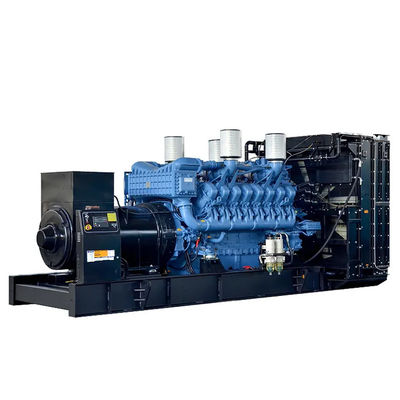

Diesel generaor
|
value
|
|
|
Model
|
MP-M1300
|
|
|
Power
|
1300KW/1625KVA
|
|
|
Frequency
|
50HZ
|
|
|
Voltage
|
400V
|
|
|

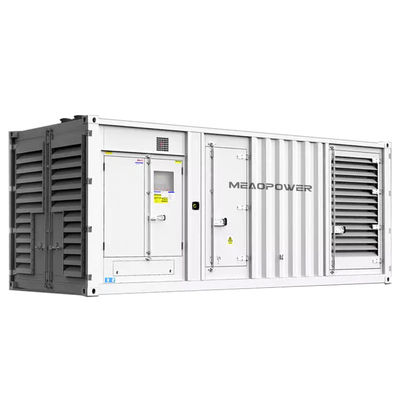

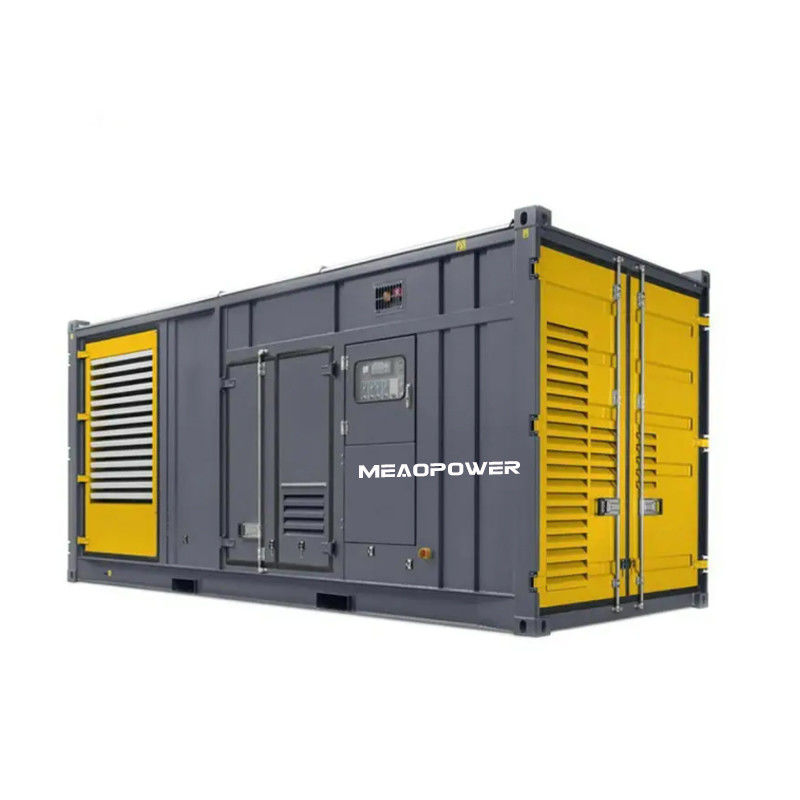

Optional type
|
Open type/Silent
|
|
|
Size of open type
|
6058*2438*2896mm
|
|
|
Weight of open type
|
15200kg
|
|
|
Engine
|
|
|
|
Model
|
MTU 12V4000G23
|
|
|
Cylinder
|
12V Arrangement
|
|
|
Bore*Stroke
|
170mm*210mm
|
|
|
Displacement
|
57.2L
|
|
|
Fuel consumption
|
193g/kw.h
|
|
|
Speed governor
|
Electronic
|
|
|
Alternator
|
|
|
|
Optional brand
|
Stamford/Leroy Somer/Mecc Alte/Marathon
|
|
|
Exciter type
|
Single bearing,brushless,Self-excited
|
|
|
Power factor
|
0.8
|
|
|
Voltage adjust
|
≥5%
|
|
|
Insulation
|
H
|
|
|
Protection grade
|
IP23
|
|
|
Controller
|
|
|
|
Option brand
|
Deepsea/Deif/ComAp/Smartgen
|
|
