Product Details:
|
| Warranty: | 1year | Rated Voltage: | 110V-480V |
|---|---|---|---|
| Rated Current: | 20A To 7000A | Speed: | 1500 Rmp / 1800 Rmp |
| Frequency: | 50 Hz/ 60 Hz | Weight: | 9800KG |
| Engine Model: | YC12VC1680L-D20 | Alternator: | MP-A-1000 |
| Rated Power: | 1000KW | Phase: | 3 |
| Engine Brand: | Yuchai Brand | Engine Cylinder: | 12/V |
| Noise: | 105dB(A) | Delivery Port: | Shanghai China |
| Output Type: | AC Three Phase 220/380V 50/60Hz | Fuel: | 0#or-10# Light Diesel Oil |
| Port: | Shanghai |
|

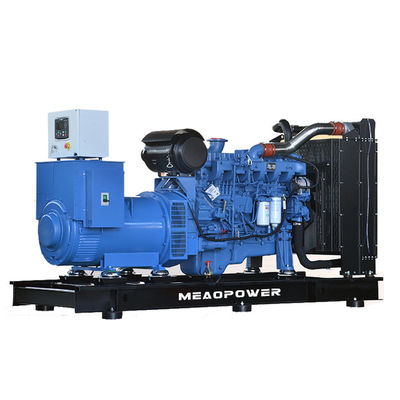

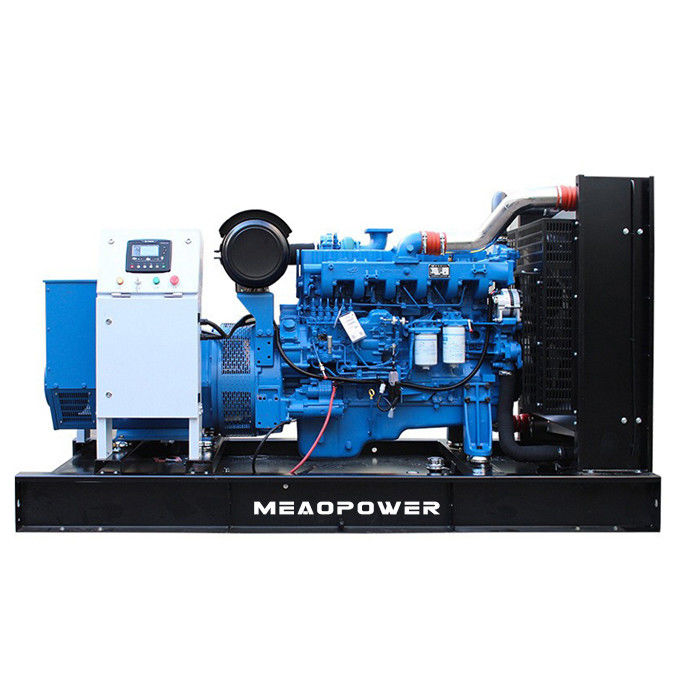

Diesel generaor
|
value
|
|
|
Model
|
MP-Y1000
|
|
|
Power
|
1000KW/1250KVA
|
|
|
Frequency
|
50HZ
|
|
|
Voltage
|
400V
|
|
|

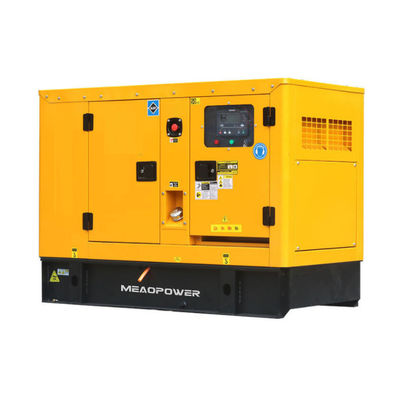

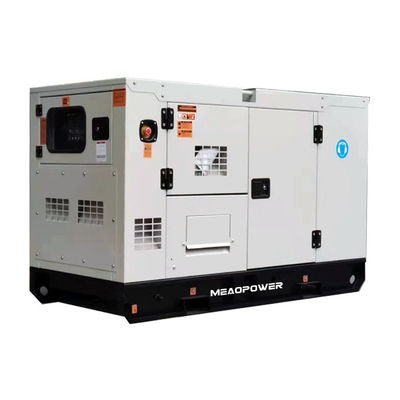

Optional type
|
Open type/Silent
|
|
|
Size of open type
|
5000*2000*2500mm
|
|
|
Weight of open type
|
9800kg
|
|
|
Engine
|
|
|
|
Model
|
Yuchai YC12VC1680L-D20
|
|
|
Cylinder
|
12V Arrangement
|
|
|
Bore*Stroke
|
200mm*210mm
|
|
|
Displacement
|
79.17L
|
|
|
Fuel consumption
|
195g/kw.h
|
|
|
Speed governor
|
Electronic
|
|
|
Alternator
|
|
|
|
Optional brand
|
Stamford/Leroy Somer/Mecc Alte/Marathon
|
|
|
Exciter type
|
Single bearing,brushless,Self-excited
|
|
|
Power factor
|
0.8
|
|
|
Voltage adjust
|
≥5%
|
|
|
Insulation
|
H
|
|
|
Protection grade
|
IP23
|
|
|
Controller
|
|
|
|
Option brand
|
Deepsea/Deif/ComAp/Smartgen
|
|
